TATA MCV MODELS

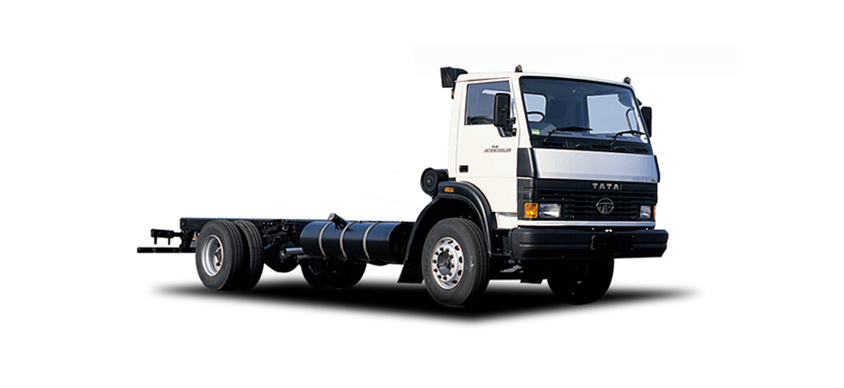

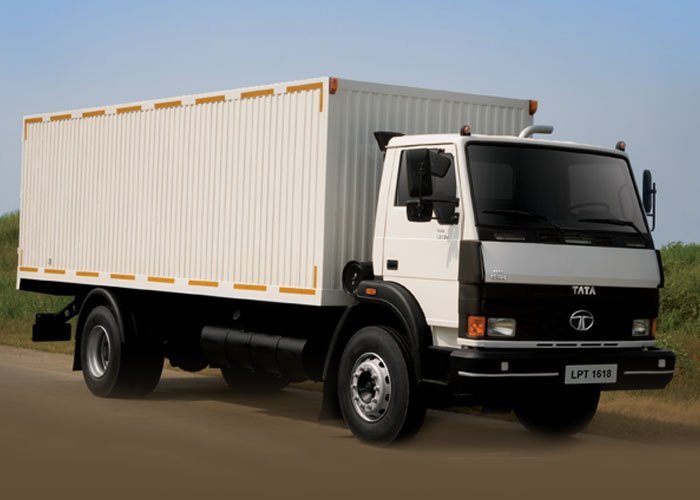

LPT 1618 Cab Chassis Specifications:

Engine : Cummins B180 20 Euro - II Water cooled direct injection turbo charged

Fuel Type : Diesel

No. of Cylinders : 6

Max. Power : 180 HP @ 2500rpm

Max. Torque : 650Nm (66.6mkg) @ 1500rpm

Capacity : 5883cc

Clutch : Single plate dry friction type

Transmission : 6 Forward / 1 Reverse

Dimensions (mm) : L 9,047 x W 2,440 x H 3,170

Wheelbase (mm) : 5,195

Permissible FAW : 6,000 Kg

Permissible RAW : 10,200 Kg

Permissible GVW : 16,000 Kg

Permissible Payload : 10,000 Kg
